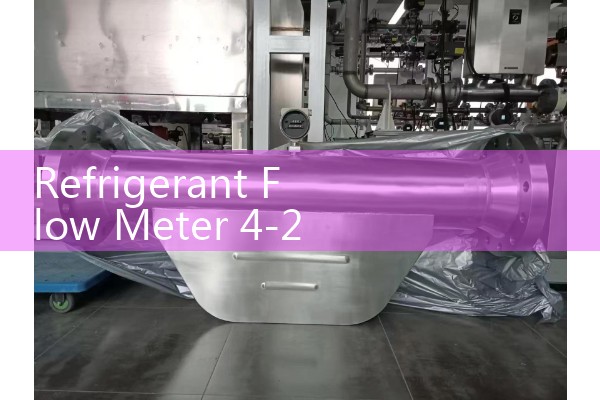

Refrigerant Flow Meter 4-20mA Output: Shielding Long-Distance Analog Transmitters
Quick Answer: For refrigerant flow measurement, a 4-20 mA analog output with proper shielding ensures reliable signal transmission over distances up to 500 meters. Silver Automation Instruments supplies Coriolis and vortex flow meters with this output, designed for R134a, R410A, and ammonia applications. You get stable readings without interference, even when the control room is far from the compressor skid.
Why 4-20 mA Is the Standard for Refrigerant Meters
4-20 mA current loops reject electrical noise better than voltage signals. In a refrigeration plant, VFDs and large motors create harsh EMI. A current signal stays clean on a shielded twisted pair cable. Many engineers in Southeast Asia and the Middle East prefer this because it simplifies PLC and SCADA integration. No signal converters needed. Just two wires for power and data, loop powered.
Shielding Matters When Cables Run Long
Here is the thing: most refrigeration engineers overlook cable shielding until they get erratic readings. Cable runs from the flow meter to the control panel often exceed 100 meters. In one project we supplied to a cold storage facility in Thailand, the cable distance was 180 meters. The customer used a standard unshielded cable and saw readings drift by 2 percent during compressor starts. After switching to a shielded cable with drain wire and grounding at one end, the 4-20 mA signal stabilized. The Silver Instruments Coriolis meter with an integral sensor and remote transmitter kept its accuracy within 0.2 percent of rate.
Always use twisted pair, foil shield, and ground the shield only at the receiver end. This avoids ground loops. We recommend Belden 8760 or equivalent. The transmitter housing is IP67 rated, so moisture does not affect the electronics.
Flow Meter Types for Refrigerant Lines
Refrigerants can be liquid, gas, or two-phase. Coriolis mass flow meters handle all these phases directly. They measure mass flow in kg/h, independent of density changes. Our CMF series with 4-20 mA and HART output works with R134a, R404A, R407C, and NH3. For pure gas phase, a vortex flow meter with temperature and pressure compensation can also give mass flow. But for refrigeration systems where oil entrainment exists, Coriolis is more robust. A food cold chain logistics company in Brazil recently chose a DN25 Coriolis meter for an R507 line. They needed to track refrigerant charge and detect leakage. The 4-20 mA signal fed directly into their energy management system.
In liquid ammonia service, moisture and corrosion are concerns. We offer fully welded stainless steel 316L meters, no internal gaskets. The 4-20 mA output is available with ATEX Zone 2 protection for ammonia compressor rooms.
Installation Tips for Long-Distance Analog Transmission
Keep the signal cable away from power cables. Maintain at least 300 mm separation. U
Check the loop resistance. Simple formula: maximum resistance = (supply voltage - 9) / 0.02. If supply is 24 VDC, max resistance is 750 ohm. Cable resistance is typically 0.02 ohm per meter for 0.5 mm² copper. So for 400 meters round trip, resistance is about 8 ohm. Nothing to worry about.
Silver Automation Instruments Solutions
We manufacture Coriolis mass flow meters and vortex flow meters with 4-20 mA output as standard. Every meter comes with a calibration certificate traceable to national standards. For refrigerant applications, you will find options for DN10 to DN200, pressures up to 100 bar, and temperatures from -40 °C to +150 °C. Our online flowmeter selector at flow-meter.com.au helps you narrow down the right model.
To get a quotation, send an email to [email protected]. Include your refrigerant type, pipe size DN, pressure in bar, temperature range, and required flow rate. You can also call us at +86-25-68650347 or reach us on WhatsApp at +86-25-52155837. We respond in 12 hours. For fast support, send us a photo of your nameplate.
Frequently Asked Questions
Can the 4-20 mA output send a signal 500 meters?
Yes. With a properly shielded cable and 24 VDC supply, 500 meters is possible. The signal current stays constant over the loop length. Ensure the total loop resistance is within the transmitter limit.
What flow meter do you recommend for R134a liquid refrigerant?
A Coriolis mass flow meter from our CMF series is the best choice. It measures mass flow directly and does not need separate density or temperature compensation. DN15 or DN20 is common for refrigeration circuits.
How do I avoid noise from VFDs?
Use a shielded twisted pair cable with the shield grounded at the PLC end only. Keep the cable separated from motor cables. Our meters have built-in filtering, but proper installation is the real key.
Do you offer ATEX certified meters for ammonia?
Yes. We have ATEX Zone 1 and Zone 2 versions for hazardous areas. The 4-20 mA output is intrinsically safe when used with a barrier.
How can I order a refrigerant flow meter with 4-20 mA output?
Email [email protected] with your full operating parameters. Include the refrigerant type, pipe diameter, pressure, temperature, and flow range. You can also call +86-25-68650347 or WhatsApp at +86-25-52155837. Our engineers will recommend a meter and send a quotation within one business day.
