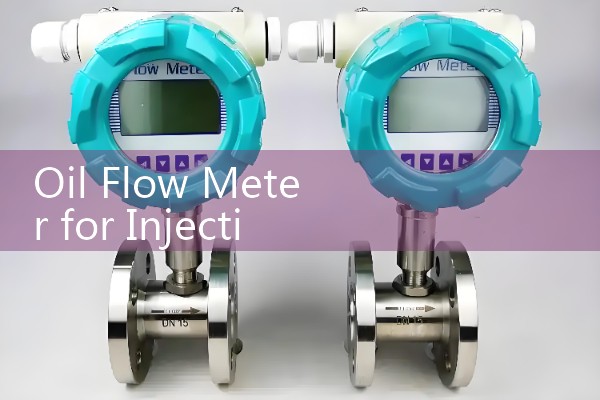

Oil Flow Meter for Injection Molding: Hydraulic Oil Loop Sizing for Machinery
Quick Answer: For hydraulic oil loops in injection molding machines, positive displacement flow meters such as oval gear or gear meters deliver the most reliable accuracy. The correct meter size depends on the maximum oil flow rate, operating viscosity, and pipe diameter. Silver Instruments supplies oval gear flow meters designed for hydraulic oil, with outputs like 4-20 mA HART for PLC integration across Southeast Asian and global factories.
Injection molding machines rely on hydraulic oil to drive clamps, ejectors, and screw movements. Controlling that oil flow prevents overheating, reduces energy waste, and catches pump wear early. A flow meter installed in the main return line or the cooling loop gives maintenance teams real data instead of just pressure readings.
Most engineers skip this part but here is the thing: hydraulic oil viscosity changes with temperature. At 40 °C, ISO VG 46 oil flows easily. At 25 °C during startup, its viscosity can jump to over 200 cSt. An oval gear flow meter handles viscosity shifts without losing accuracy. Turbine flow meters, by comparison, underreport flow by 15% or more when viscosity climbs. In practice, we have seen this on customer sites many times in plastic injection plants around Ho Chi Minh City and Bangkok.
Sizing the hydraulic oil loop starts with the pump capacity. A 300 ton injection molding machine might pump between 80 and 120 L/min during fast mold closing. The return line pipe size is usually DN25 or DN32. Silver Instruments recommends matching the flow meter diameter to the pipe to avoid pressure drop. A DN25 oval gear flow meter rated up to 150 L/min fits most machines under 500 tons.
Pressure ratings matter too. Many hydraulic circuits operate at 10 to 20 bar on the return side but can spike. Silver Instruments offers meters with aluminum or stainless steel bodies tested to 40 bar. Last year a Vietnamese customer producing thin wall packaging requested a meter that could handle 50 bar peaks and still output 4-20 mA with HART to their Siemens PLC. We built a custom stainless steel oval gear meter with PT100 temperature compensation and sent it to their Haiphong plant. The meter has been running for nine months without cleaning.
Oil cleanliness is another factor. Hydraulic oil carries micro fine particles from pump wear and seal degradation. Oval gear flow meters tolerate particle sizes up to 50 µm if a 100 mesh Y strainer is installed upstream. Always include a strainer. Without it, even a robust positive displacement flow meter can jam. We keep spare gear sets in our warehouses in Australia and Singapore for fast replacement.
When you integrate a flow meter into an injection machine control system, analog 4-20 mA wires directly into the PLC analog input card. Many factories in Mexico and Indonesia still use simple displays, so a local totalizer screen with a pulse output works best there. Silver Instruments configures each meter with the flow range and unit you need: L/min, m³/
Loop sizing also considers the cooling circuit. If you measure the heat exchanger oil loop separately, flow rates might be lower, say 20 to 50 L/min through a DN15 or DN20 pipe. For those smaller lines, our compact oval gear flow meter with 1/2 inch BSP threads and a 4-20 mA loop powered output is a direct fit. No reducer fittings needed.
Here is a practical sizing table many engineers use: for pipe size DN15, select a meter with max flow 60 L/min; DN20 up to 100 L/min; DN25 up to 160 L/min; DN32 up to 250 L/min. Always check the hydraulic schematic of your injection machine. Manufacturers like Haitian or Chen Hsong often provide flow data in their manuals.
Oil type also dictates material selection. Standard hydraulic mineral oil works with aluminum meters. Phosphate ester fire resistant fluids require stainless steel internal parts and FKM seals. Silver Instruments asks for the oil type and operating temperature before quoting to ensure wetted material compatibility.
Frequently Asked Questions
Which flow meter type is best for hydraulic oil in injection molding?
Oval gear positive displacement flow meters are the standard choice. They measure actual volume passing through, unaffected by viscosity swings from cold starts to high operating temperatures. Gear flow meters also work well. Avoid turbine flow meters for hydraulic oil because viscosity changes cause large measurement errors.
What pipe size should I use for an oil flow meter on a 500 ton machine?
Most 500 ton injection molding machines use a DN32 return line. The flow meter should match that pipe size. A DN32 oval gear meter rated for 200 L/min handles the oil flow comfortably, even during high speed mold cycles.
Does viscosity affect the flow meter accuracy?
Positive displacement meters maintain accuracy across a wide viscosity range. An oval gear meter calibrated for 46 cSt oil will still read within ±0.5% at 200 cSt. Electronic linearization further corrects any minor shifts for HART output meters.
Can the flow meter survive pressure spikes in the return line?
Yes, if you choose a meter rated for the maximum spike pressure. Silver Instruments builds oval gear flow meters with 40 bar standard body and tests them to 1.5 times that. For higher spikes up to 63 bar, stainless steel housings are available.
What information do you need to quote an oil flow meter for an injection machine?
Send us your oil type, operating temperature (°C), normal and maximum flow rate (L/min), pipe size (DN), and pressure (bar). Also mention if you need ATEX Zone 1 certification or 4-20 mA HART. Our team replies with a complete data sheet and price within one business day.
Get your hydraulic oil loop measurement right the first time. Describe your injection molding machine parameters: pressure (bar), temperature (°C), pipe size (DN), and oil flow range. We will recommend a fitted oval gear flow meter from Silver Automation Instruments and send a competitive quote to your procurement team.
