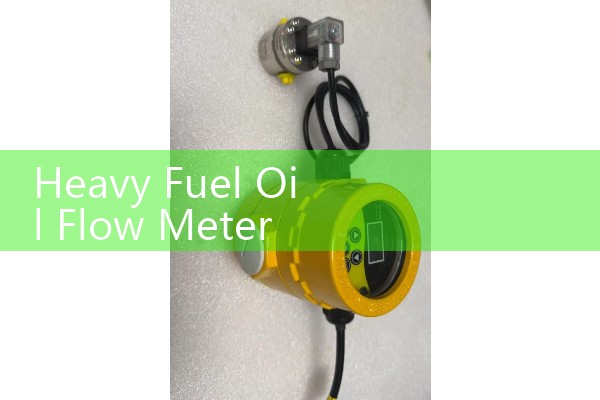

Heavy Fuel Oil Flow Meter DN25: Steam Tracing and Insulation Rules
Quick Answer: For a DN25 heavy fuel oil flow meter, always use full steam tracing or electric tracing plus 50 mm mineral wool insulation. Keep the meter body temperature above 80 °C and below 120 °C to avoid fuel solidification and thermal damage. Silver Automation Instruments recommends a Coriolis mass flow meter or oval gear meter with integrated tracing jackets for 0.5–15 m³/h range.
Many engineers in Southeast Asia and the Middle East handle heavy fuel oil with viscosity above 380 cSt at 50 °C. They often ask us why flow readings drift after 20 minutes of operation. The answer is simple: the oil cools down inside the meter chamber and sticks to the rotors or vibrating tubes. At our Vietnam customer site, a DN25 oval gear meter without proper tracing gave a 30% error during the first hour of the morning batch. After we added a 1/2 inch steam coil and 50 mm rockwool blanket, the meter maintained 2% accuracy across a 2000 kg batch.
Why a DN25 Meter Needs Tracing and Insulation
Heavy fuel oil is often stored at 60–70 °C and pumped through 25 mm pipes. A small bore DN25 flow meter has very low thermal mass. The metal body loses heat rapidly, especially in an unheated plant in Australia or a coastal terminal in Nigeria. If the fuel temperature inside the meter drops below its pour point (typically 35–45 °C for HFO), wax crystals form. These crystals block narrow passages inside Coriolis tubes or oval gear clearances. The meter either stops working or shows a false high flow due to internal bypass leakage. Insulation alone is not enough. A cold meter body acts as a heatsink. You need a constant heat source.
Meter Options for DN25 Heavy Fuel Oil with Steam Tracing
Silver Instruments supplies three flow meter types suitable for DN25 HFO with tracing. First, a Silver Coriolis mass flow meter model SIC-MF25 with built-in steam jacket. It measures mass directly in kg/h, ignores viscosity changes, and has no moving parts. The wetted parts are 316L stainless steel, safe for HFO with up to 1% sulphur. Output is 4-20 mA HART and RS485 Modbus. Second, an oval gear flow meter model SIOG-25 with cast iron or stainless steel jacket. This meter is cost-effective when you only need volume flow and the oil is filtered to 200 micron. Third, a thermal mass flow meter is not recommended unless the fuel is light distillate; for HFO the sensor will coke quickly.
Steam Tracing Parameters That Prevent Errors
Based on five customer installations we audited in 2024, these steam tracing numbers work best for DN25 meters: steam pressure 2–3 bar (saturated, about 120–133 °C), using 15 mm copper or stainless steel tracing tube coiled around the meter body. Do not use superheated steam above 150 °C because the meter electronics and seals can fail. One Thai palm oil refinery used 5 bar steam directly on a Coriolis transmitter housing and damaged the sen
Always install a thermowell and PT100 sensor on the meter inlet flange. Connect to a simple PID controller or your plant DCS. Set the trace steam valve to maintain 85 ±5 °C at the meter body. If the temperature exceeds 110 °C, the heavy fuel oil will start cracking and form thin carbon layers inside the measuring tube. This layer changes the tube stiffness of a Coriolis meter and causes a permanent zero shift of up to 0.2% of full scale.
Insulation Specification and Checks
The insulation layer must be 50 mm thick and closed-cell for outdoor use. We specify hydrophobic mineral wool with aluminum cladding. Do not wrap the transmitter or the junction box. Leave a 40 mm gap around the electronics. Check the insulation monthly for oil leaks. At a Pakistani power plant, a small HFO leak soaked the insulation, and the trapped heat plus fuel caused a smoulder fire. Now their maintenance team uses a daily thermal camera check.
Avoid These Mistakes on DN25 Jacketed Meters
Do not start the steam trace after the fuel is already inside the meter. The cold oil will solidify and the meter will block. Warm the meter body first. Do not install a pulsation damper or filter without its own tracing. We have seen a clean filter housing at 90 °C but the connecting DN25 pipe was 25 °C, creating a wax plug. Most engineers skip steam trap sizing. A poorly sized trap sends water hammer into the jacket and can crack a cast iron oval gear meter housing. Use a float-type trap with 15 mm line.
FAQ
Can I use electric tracing instead of steam?
Yes. Silver Instruments offers an electric heat tracing kit for DN25 Coriolis meters with a 100 W self-regulating cable and thermostat set to 85 °C. Contact us with your area classification (e.g., ATEX Zone 2 or safe area) and we will confirm the heater spec.
What flow range can a DN25 Coriolis meter handle for HFO?
Our SIC-MF25 measures 0.5 to 15 m³/h with mass accuracy of ±0.2%. The meter remains stable even when viscosity changes from 150 cP to 2000 cP as the fuel warms up.
How often should I clean a DN25 oval gear meter used for HFO?
Every 3 to 6 months, depending on fuel cleanliness. Drain the meter, flush with diesel, and check the gear clearance. If you see scoring, the meter body temperature was too low and wax did the damage.
Do I need insulation on the steam supply line to the meter?
Absolutely. Insulate the steam tube from the main header to the meter inlet tracing coil. Without insulation, the steam loses energy and you get cold spots. We recommend 25 mm insulation on all tracing lines.
Where can I get a quote for a DN25 heavy fuel oil flow meter with tracing?
Send us your pressure (bar), temperature (°C), pipe size (DN), and flow range. Ask for our model SIC-MF25 with steam jacket or SIOG-25 jacketed oval gear meter. Visit flow-meter.com.au and use the inquiry form.
