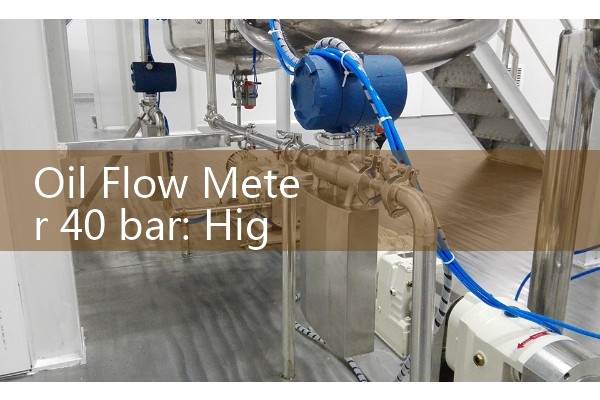

Oil Flow Meter 40 bar: High-Strength Sizing for Chemical Reactor Feeds
Quick Answer: For chemical reactor feeds running at 40 bar, you need an oil flow meter with a pressure rating of at least 63 bar and a safety factor of 1.5. Silver Instruments supplies positive displacement oval gear meters and Coriolis mass meters rated up to 100 bar, with PT100 temperature compensation and 4-20 mA HART output. We share below the material, viscosity, and mounting choices that worked on a batch reactor skid for a paint plant in Indonesia.
Why 40 bar Changes Meter Selection
Most standard flow meters are tested at 16 or 25 bar. At 40 bar the first thing engineers check is the flange rating and the housing burst pressure. You cannot pick a meter only by pipe size. The real limiting factor is often the mechanical seal between the measuring chamber and the gear train in oval gear meters. Silver Instruments uses a magnetic coupling drive on OGM series meters. The coupling isolates the process pressure from the register. This design removes dynamic seals that leak at 40 bar and above.
In practice, a small DN15 oval gear meter rated for 100 bar will survive 40 bar service without any issue. But the sizing step must also include pressure drop calculation. If you push high-viscosity oil through an undersized meter at 40 bar, the pressure loss alone can starve the reactor feed pump.
Positive Displacement vs. Coriolis for Reactor Dosing
Here is the thing. For catalyst injection and polyol dosing, repeatability matters more than absolute accuracy. Oval gear meters (positive displacement) give you ±0.5% repeatability and handle viscosities from 5 cP up to 25,000 cP without recalibration. A Coriolis meter can give you mass flow directly at ±0.2%, but you pay for it. Most process engineers in Southeast Asia choose an oval gear meter for 40 bar oil feeds because the installed cost is 40 to 60 percent lower.
That said, if your reactor feed contains a light solvent that changes density with temperature, a Coriolis mass meter from Silver Instruments measures mass flow directly. You can ignore density tables. Both meter types are available with ATEX Zone 1 certification for chemical plants running solvent-based reactions.
Viscosity and Meter Sizing: A Practical Approach
We have seen this on customer sites many times. The plant orders a meter for a 2-inch line, but their oil viscosity at 25 °C is 1,200 cP. High-viscosity media demand a meter with larger internal clearances or a jacketed housing to keep the oil warm. Silver Instruments configures the meter bore size based on your actual flow rate in kg/h, not the pipe diameter. A typical reactor feed for a 5,000 L batch might require only 300 to 800 kg/h. For that range, a DN15 or DN20 oval gear meter is enough, even at 40 bar.
You must also check the minimum flow rate. At startup the reactor feed often runs at 10 to 20 percent of the full scale. Select a meter with a 10:1 turndown ratio at the very minimum. Our Coriolis meters handle 20:1 turndown easily.
Material Witness: Wetted Parts for Solvents, Oils, and Resins
The standard 40 bar oil flow meter uses 316L stainless steel body and FKM or PTFE seals. But here is a specific data point. Last year a customer in Vietnam asked us for a meter to dose a mixture of xylene and linseed oil at 40 bar and 140 °C. FKM swelled after three weeks. We switched the seal material to FFKM and recommended a PTFE-lined gear chamber. That meter has now run for 14 months with zero drift. When you send your enquiry, tell us the full chemical list. We will select the seal material based on actual compatibility data, not generic charts.
Output and Integration into DCS/PLC Systems
Silver Instruments oval gear meters with a 40 bar rating come with a quadrature pulse output as standard. You can also order the meter with a built-in 4-20 mA HAR
Installation Notes for High-Pressure Loops
Most engineers skip this part, but it matters. At 40 bar you must install a bypass loop with isolation valves and a Y-strainer upstream. A tiny piece of gasket debris can lock an oval gear meter rotor and trip your process. Silver Instruments ships each meter with a pair of pressure gauge ports so you can monitor permanent pressure drop. If the delta P creeps up over months, you know it is time to clean the strainer. Mount the meter horizontally with the register facing up. Keep at least 10 DN of straight pipe upstream and 5 DN downstream, even though positive displacement meters are not sensitive to flow profile.
A Customer Case from Gujarat, India
In 2023 a specialty coatings manufacturer in Gujarat upgraded their alkyd resin reactor feed system. They had a turbine meter that drifted at 38 bar because of bearing wear. Silver Instruments sent a DN15 OGM series oval gear meter with FKM seals and an integrated PT100. The meter delivered a stable 4-20 mA signal to their Siemens PLC. Batch consistency improved because the resin-to-solvent ratio stayed within 0.3% of the recipe. The plant manager reported zero maintenance in the first 8 months. That same meter configuration works for epoxy resin, hot melt adhesive, and heat transfer oil at 40 bar.
How to Request a Quotation Without Long Email Chains
Send us your pressure (bar), temperature (°C), pipe size (DN), and flow range. If you have the fluid viscosity in cP or the chemical names, include those too. Silver Instruments will reply with a sizing report, a recommended model, a dimensional drawing, and a price for Ex or non-Ex versions. For urgent reactor feed projects, we ship from stock in Singapore, Melbourne, or Shanghai within 5 working days. Use the inquiry form on this page and a product engineer will get back to you in less than 2 hours during Asian business hours.
Frequently Asked Questions
Q: What is the maximum pressure rating of a Silver Instruments oil flow meter for reactor feeds? A: Standard oval gear meters go up to 100 bar; Coriolis meters up to 200 bar. We rate every meter with a 1.5 safety factor. For 40 bar operation, select a 63 bar or 100 bar meter.
Q: Can I use a Coriolis meter instead of an oval gear meter for 40 bar oil? A: Yes. Coriolis meters work perfectly at 40 bar and give mass flow directly. They cost more but need less recalibration and handle rapid density changes.
Q: What seal material resists hot oil and xylene? A: For hot oil mixed with aggressive solvents, FFKM or PTFE seals are required. FKM is fine for pure oil up to 180 °C. Tell us your chemical list and we select the correct material.
Q: Do I need ATEX certification for a reactor feed meter? A: If your reactor handles flammable solvents and the meter sits in a Zone 1 or Zone 2 area, you must have ATEX or IECEx certification. Silver Instruments supplies Ex ia and Ex d versions with valid certificates.
Q: How do I connect the 40 bar flow meter to my PLC? A: The meter outputs a pulse or 4-20 mA HART signal. You wire the signal pair directly to your PLC analog input module. The PT100 output connects to a temperature input card or the same M12 connector on multivariable models.
Need a high-strength oil flow meter for chemical reactor feed at 40 bar? Send your operating pressure, temperature, DN, flow range, and fluid details. Silver Automation Instruments will quote a reliable, repeatable meter with the right seals and certifications.
